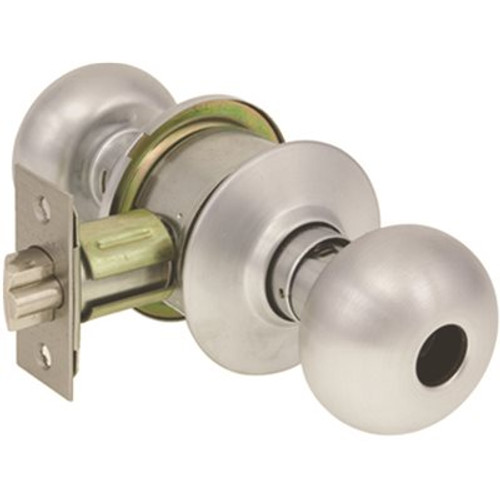

US Lock US LOCK 2030 ENTRY LOCKSET 2-3/4" BS LESS CYL PLY DULL CHROME

| Recommended for use on all residential, light commercial and institutional applications where normal traffic is anticipated.| FUNCTION: Latch by either side except when pushing turnbutton locks outside knob | Unlocked by turning inside knob or using key outside | Turning inside button keeps outside knob lokcked | Key wil retract latch | FEATURES: Will accept US1539 cylinders Including the RX Keyway | Unconditional warranty | Cylindrical design - no exposed parts | Easy installation | Full lip strike | SPECIFICATIONS: Door thickness: 1-3/8" to 1-3/4" | Backset: 2-3/4" standard | Latch Bolt: Solid brass extruded rod | Deadlocking latch | Latch units are interchangeable | Latch Front: Solid brass and bronze 2-1/4" x 1"| Cylinder: Less cylinder: will accept US1539 cylinders | Certification: ANSI: A156.2 Series 4000 Grade 2. Listed by Underwriters Laboratories Inc. ( 1/2" throw latch functions) | Installation: Cross bore for housing 2-1/8" | Edge bore for latch unit 1" diameter | Mortise for latch front as required | Adjust outside rose to door thickness on visual indicator | Individually boxed, 24 per case
