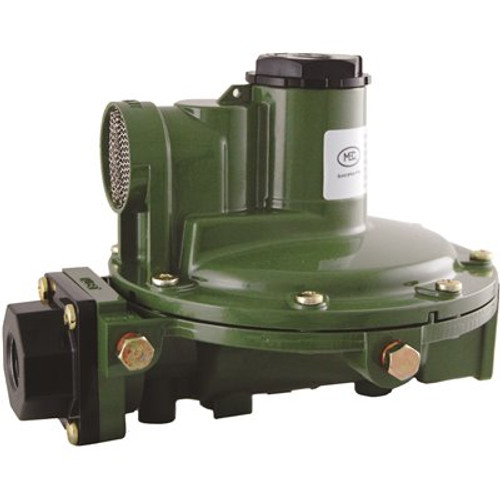

Excela-Flo MEC Full Size Second Stage Regulator 1/2 in. FNPT Inlet x 3/4 in. FNPT Outlet - 11 in. WC Outlet

Offers all of the same features as the compact MEGR-1122 Series but in a full size, high capacity version. Our full size second stage regulators have a large fabric reinforced diaphragm for superior downstream regulation, heavy-duty wrench ATS, and a large 3/4 FNPT tapped drip lip vent to help prevent relief valve blockage. The MEGR-1622 Series have both the inlet and outlet in line where the MEGR-1652 series have a rear discharge back mount outlet for convenient wall mount applications.|Maximum inlet pressure: 10 psig|Orifice size: 0.219|Capacity in BTU/H LPG -1,300,000|Outlet adjustment range: 9-13 in. WC
