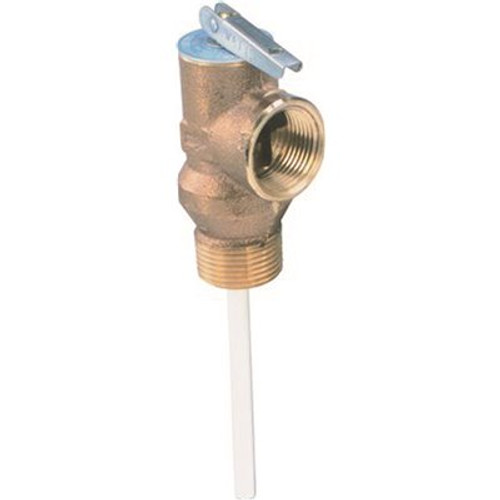

Watts 3/4 In Lead Free Self Closing Temp And Pressure Relief Valve, 150 psi, Extended Shank Up To 1 3/4 In Insulation

Vendor :

(No reviews yet) Write a Review
$63.83
SKU:
292894
short description:
T&P RELIEF VALVE 3/4, LF"
Item Number:
0068720
This 3/4 inch lead free temperature and pressure relief valve is designed to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 105,000 BTU/hr. This two-in-one relief valve provides a proven and cost effective means to protect against excessive temperature and pressure emergency conditions. It features a lead free copper alloy body with extended shank to accommodated up to 1 3/4 IN of insulation, NPT male inlet and NPT female outlet connections, a unique thermostat with special thermo-bonded coating, and test lever. The temperature relief is 210 degrees F (99 degrees C) and the pressure relief is set at 150 psi (10.3 bar).|Lead free copper alloy body construction|Extended shank for thick tank insulation up to 1 3/4 inches|3/4 IN male NPT inlet with pre-applied thread sealant|ASME rated and CSA listed|Pressure relief range is 75 to 150 psi|ASME rated, CSA Listed|Extension thermostat with thermo-bonded coating|Used to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 105,000 BTU/hr|ANSI Z21.22 certified|Includes test lever and stainless steel spring
