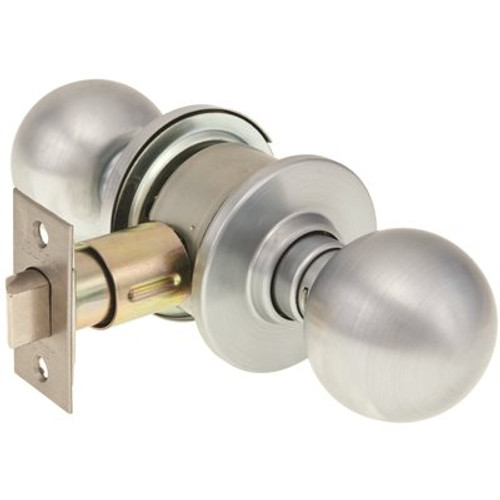

US Lock US LOCK 2030 SERIES PASSAGE LOCKSET 2-3/4" BS BALL DULL CHROME

Recommended for use on all residential, light commercial and institutional applications where normal traffic is anticipated.| FUNCTION: Knob on both sides active, no locking | FEATURES: Cylindrical design - no exposed parts | Unconditional warranty | Full lip strike | SPECIFICATIONS: Door thickness: 1-3/8" to 1-3/4" | Backset: 2-3/4" standard | Latch Bolt: Solid brass extruded rod. Deadlocking latch. Latch units are interchangeable | Latch Front: Solid brass and bronze 2-1/4" x 1"| Certification: ANSI: A156.2 Series 4000 Grade 2. Listed by Underwriters Laboratories Inc. ( 1/2" throw latch functions) | Installation: Cross bore for housing 2-1/8". Edge bore for latch unit 1" diameter. Mortise for latch front as required. Adjust outside rose to door thickness on visual indicator | Individually boxed, 24 per case
