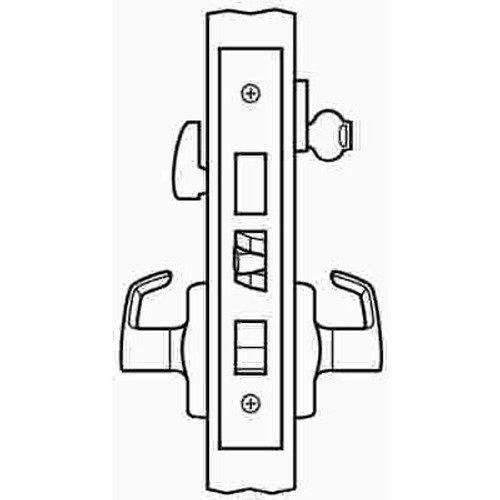

US Lock CORBIN RUSSWIN ML2000 SER. MORT.LCK, ENT/APART TOGGLE, LUSTRA

Latchbolt lever either side, unless outside lever is locked by toggle-action stop or by projection deadbolt. Deadbolt by key outside or by thumbturn lever inside. Inside lever simultaneously retracts latchbolt and deadbolt: outside lever remains locked. Auxiliary latch deadlocks latchbolt| No escutcheon | 1-3/4" door thickness | 2-3/4" backset | Handed; quick reversible. The lockset can be re-handed without disassembling the lock case | Lockcase is heavy gauge chrome plated steel, 5-7/8" x 4" x 15/16” | Armored front: Wrought brass or bronze, attached by machine screws to lockcase front | Latchbolt: 2-piece mechanical with anti-friction insert, 5/8" x 1" x 3/4" throw | One-piece stainless steel deadbolt, 19/32" x 1-1/4" x 1" throw | ANSI straight lip standard strike, wrought brass or bronze, 4-7/8" x 1-1/4" x 1-1/8" lip to center | 6 pin cylinder, L4 keyway |Requires a standard clover Cam A01 | 2 nickel silver keys | Finish: 626 (Satin Chrome)|1-3/4 door thickness|2-3/4 backset|Handed; quick reversible. The lockset can be re-handed without disassembling the lock case|Lockcase is heavy gauge chrome plated steel, 5-7/8 x 4 x 15/16|Armored front: Wrought brass or bronze, attached by machine screws to lockcase front|Latchbolt: 2-piece mechanical with anti-friction insert, 5/8 x 1 x 3/4 throw|One-piece stainless steel deadbolt, 19/32 x 1-1/4 x 1 throw|ANSI straight lip standard strike, wrought brass or bronze, 4-7/8 x 1-1/4 x 1-1/8 lip to center|6 pin cylinder, L4 keyway|2 nickel silver keys|Finish: 626 (Satin Chrome)
