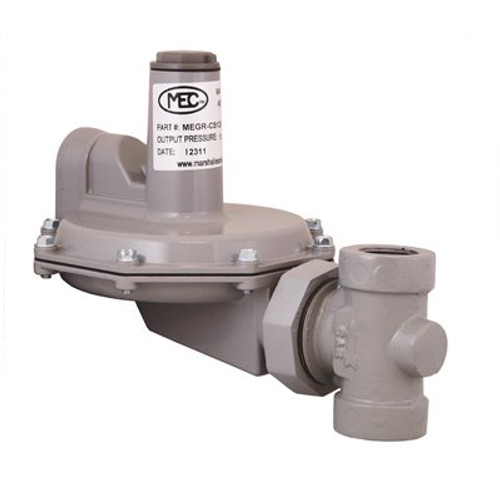

MEC Industrial Low Pressure Regulator with 1/2 in. Orifice, 1-1/4 in. FNPT Inlet and Outlet, 10-14 in. WC

The MEGR-CS1200 Series commercial/industrial regulators are large capacity, low pressure second stage units for installation at schools, bakeries, and similar applications. They contain a limited capacity internal relief valve and can be used in conjunction with either MEGR-1627 Series or MEGR-1630 Series high-pressure regulators. For high capacity installations, the MEGR-1289H Series relief valve is required to be installed in the downstream system.|1-1/4 in. FNPT inlet/outlet connections and 1/2 in. orifice diameter|Outlet pressure range: 6-14 in. WC / set at 11 in. WC|Regulator spring: music wire|Maximum inlet pressure: 25 psig
