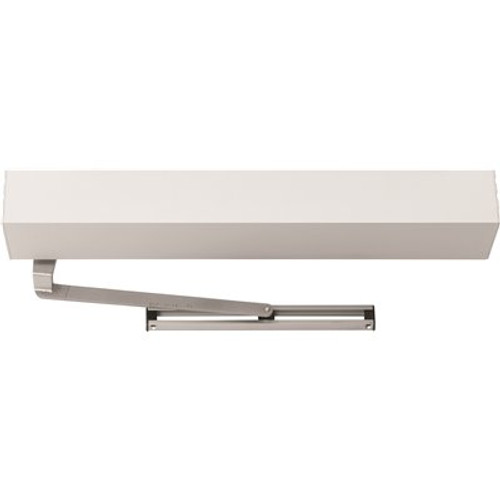

LCN 33 in. to 48 in. Grade-1 Aluminum RH Door Close Standard Arm Pull Side Mount Electro-Mechanical Power Operator
Vendor : LCN
$10,299.38
- SKU:
- 314022597
- short description:
- ARM PULL DOOR OPERATOR RH 36
- Item Number:
- 9531-STD RH ANCLR 36
The low-energy electromechanical Senior Swing Series operators are LCN's heaviest-duty version for high-abuse and high-traffic areas. The Senior Swing Series is backed by a 2-year limited warranty, is UL Listed, meets ANSI/BHMA 156.19, the American Disabilities Act (ADA) and ANSI A117.1 requirements for accessibility. The 9500 Series ships with a standard header and optional customizable header lengths are offered. The power boost provides additional closing force in severe wind. Push 'N Go non-switch activation takes over when a pedestrian manually opens the door to 5 degree , then holds the door fully open for 1-seconds to 30-seconds, depending on the time delay.|Pull side mount power operator|Standard arm|For use with interior doors up to 48 in.|120-Volt AC 60 Hz input at 2.5 Amp, 240-Volt AC 50 Hz/60 Hz at 2.5 Amp|24-Volt AC output at 1.5 Amp|1-3/4 in. head frame, 2-3/4 in. top rail|36 in. x 5-3/4 in. unit dimension|200 lbs. maximum door weight|Includes machine screws|ANSI A156.19, grade 1, UL325, ADA|2-year warranty
