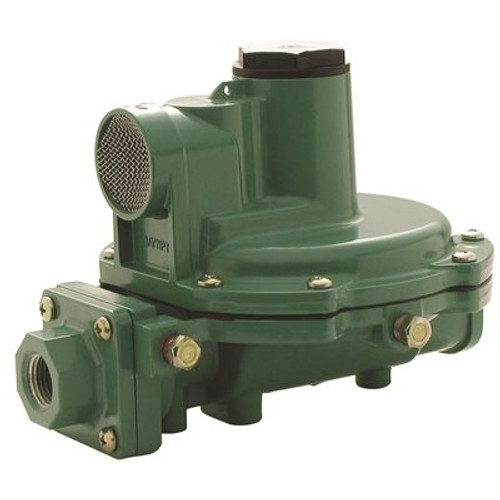

Fisher Mfg. GAS REGULATOR SECOND STAGE 1,400,000 BTU 3/4" FNPT

| Designed to serve typical domestic installations | Constructed of corrosion-resistant and wear-resistant materials, includes inlet screen | Easy system checks can be made on these units, which have built-in gauge taps on both the upstream and downstream sides | Equipped with overpressure protection with an internal relief valve and a travel stop on the closing cap | Operating inlet pressure 10 psig | Temperature capabilites: -20 degree to 150 degree C or -29 degree to 66 degree C | Compliant with NFPA 58 requirements | Green, straight through design | 20 year recommended replacement life | 1,400,000 BTU/HR | 3/4" FNPT Inlet | 3/4" FNPT Outlet | 9.5"-13" W.C. Outlet Pressure Rating^*MUST BE INSTALLED BY TRAINED PERSONNEL IN ACCORDANCE WITH NFPA 58 & 54 STATE AND LOCAL CODES
