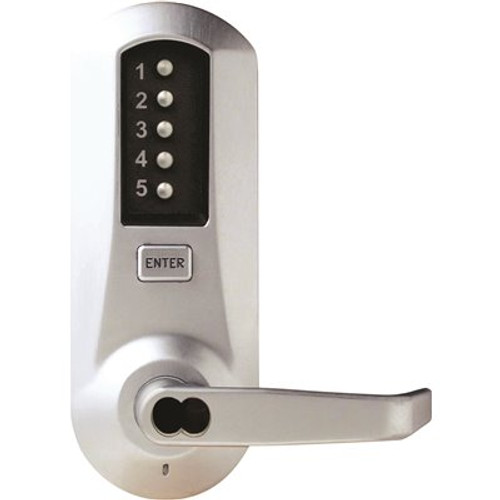

5000 Series Satin Chrome Pushbutton Lockset Entry Door Lever

The Simplex 5000 Series provides exterior access by combination, while allowing free egress. This fully mechanical lock elimates the material and labor expense of battery replacements, has a single access-code and is programmed via the keypad without removing the lock from the door. The lock is available in a wide range of configurations. See the table below for the available options.|Grade 1 cylindrical single access code pushbutton lockset|WL lever|SFIC housing less core|2-3/4 in. backset|1-1/4 in. x 4-7/8 in. ASA strike|Entrance function|Single access code|5 in. minimum stile|3-13/16 in. projection|3-1/8 in. x 8-7/8 in. escutcheon dimension|1-1/8 in. x 2-1/4 in. dead latch|1/2 in. latch throw|For doors 1-3/8 in. to 2-1/4 in. thick|ANSI A156.2, A156.3 Grade 1, UL Listed|3-year warranty
